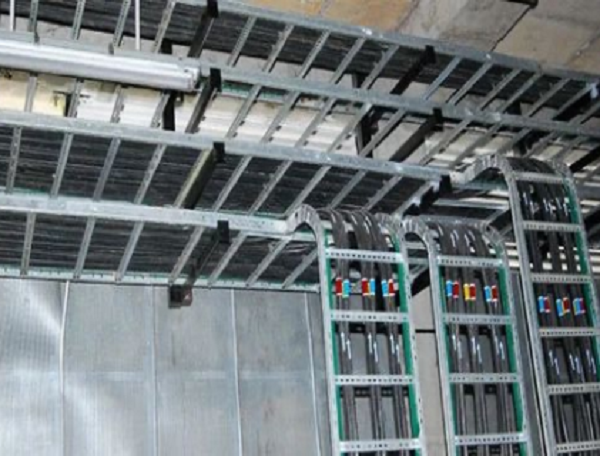

Cable Ladder
Cable ladder system allows safe transport of wires across open spans and gives protection against the overheating and also used to manage a large radius of electrical cables used for power distribution. Cable ladder has two side rails connected by cross members or rungs. We have several types of cable ladder with different rungs such as Tubular, C-profile, Rivet type. The rungs provide convenient anchors for tying down the cables.
The Metalico cable ladder system consists of a wide range of aluminium and steel cable ladders, fittings and accessories. It is a good solution for a wide variety of installations where corrosion-resistance, high loading capacity with long spans and quick and easy installations is required.
Ladder is most suitable for more heavy-duty applications, i.e. for heavier armoured cables. It is often used in the outdoors and therefore are hot-dip galvanized. Cable Ladders provide free air-flow, which is essential to avoid over-heating of cables.
Standard Sizes:
| Characteristics | Sizes |
|---|---|
| Side Height (Depth) | 50mm to 300mm |
| Material Thickness | 1.20 / 1.50 / 2 mm |
| Width | 50mm to 1000mm |
| Length | 3 Meters |
Standards:
- QCS2014/BS/ASTM
Finishes:
- Pre-galvanized
- Hot-dip galvanized
- Epoxy powder coated
